Overview

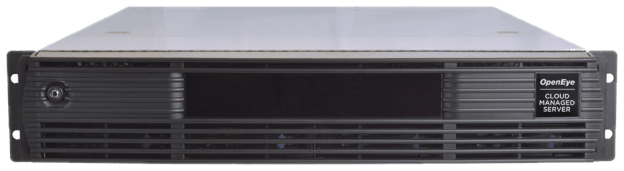

OpenEye is excited to announce the release of the next generation MH & MK-Series Cloud-Managed Enterprise Servers. The Gen. 2 MH & MK are being updated with a new motherboard, newer generation Intel processors, and an M.2 SSD OS drive*. To streamline future storage upgrades, and simplify field service replacements, the Gen. 2 MH & MK-Series have been standardized on 16TB (JBOD) and 12TB (RAID) storage drives. Additionally, RAID 6 will become the new default storage array for Gen 2 OE-MHXR (RAID) servers, delivering increased redundancy and fault tolerance. A RAID 5 conversion part number is available to users who wish to still purchase OE-MHXR recorders in the less fault tolerant RAID 5 configuration. The OE-MK Gen.2, RAID and JBOD versions, will be upgraded to 16GB of RAM standard to support increased server side analytics processing capabilities, in preparation for OpenEye's native analytics features releasing later this year.
The generation update to MK and MH recorders has resulted in the discontinuation of some storage model options and the creation of many new model options, including new higher maximum storage configurations. The OpenEye System Design Tool includes all newly updated models to assist in performing storage calculations. Reference the table below for discontinued models and recommended replacements; new model options can be located in your latest OpenEye pricelist.
*JBOD only
Impacted Models
- OE-MKX
- OE-MKXR
- OE-MHX
- OE-MHXR
| Discontinued Models | Recommended Replacement |
|---|---|
| OE-MKX16 | OE-MMX16 |
| OE-MKX20 | OE-MMX24 |
| OE-MKX24 | OE-MMX24 |
| OE-MKX30 | OE-MKX32 |
| OE-MKX36 | OE-MKX48 |
| OE-MKX12R | OE-MMX24R |
| OE-MKX20R | OE-MMX24R |
| OE-MKX24R | OE-MMX24R |
| OE-MKX28R | OE-MMX36R |
| OE-MKX36R | OE-MKX48R |
| OE-MKX64R | OE-MKX72R |
| OE-MKX80R | OE-MKX84R |
| OE-MHX24 | OE-MMX24
OE-MTX24 |
| OE-MHX30 | OE-MMX32
OE-MTX32 |
| OE-MHX36 | OE-MKX48 |
| OE-MHX48 | OE-MKX48 |
| OE-MHX64 | OE-MKX64 |
| OE-MHX24R | OE-MMX24R |
| OE-MHX30R | OE-MMX36R |
| OE-MHX36R | OE-MKX48R |
| OE-MHX48R | OE-MKX48R |
| OE-MHX64R | OE-MKX72R |
| OE-MHX128R | OE-MHX144R |
| OOE-MHX160R | OE-MHX168R
OE-MHX192R |
Comparison
| MKX GEN. 1 | MHX GEN. 1 | MKX GEN. 2 | MHX GEN. 2 | MKXR GEN. 1 | MHXR GEN. 1 | MKXR GEN. 2 | MHXR GEN. 2 | ||
|---|---|---|---|---|---|---|---|---|---|
| Channel Count | 96 | 96 | 128* | 128 | 128 | ||||
| Recording Rate | 300 Mbps | 300 Mbps | 400 Mbps | 400 Mbps | |||||
| Video Outputs | 1 x DVI-D,
1 x DVI-I, 2 x HDMI | 1 x D-SUB,
1 DVI-D, 1 x HDMI, 1 x DisplayPort | 1 x DVI-D,
1 x DVI-I, 2 x HDMI | 1 x D-SUB,
1 DVI-D, 1 x HDMI, 1 x DisplayPort | |||||
| Digital Relay Outputs | Optional Upgrade | Optional Upgrade | Optional Upgrade | Optional Upgrade | |||||
| Alarm Sensor Inputs | Optional Upgrade | Optional Upgrade | Optional Upgrade | Optional Upgrade | |||||
| USB Ports | Front:
2 x USB 2.0 Rear: 4 x USB 3.0 | 2 x USB 3.0 | Front:
2 x USB 3.0 Rear: 4 x USB 3.1 | 1 x USB 3.1 Type-A | 1 x USB Type-C | 2 x USB 2.0 | Front:
2 x USB 2.0 Rear: 4 x USB 3.0 | 2 x USB 2.0 | Front:
2 x USB 3.0 Rear: 4 x USB 3.1 | 1 x USB 3.1 Type-A | 1 x USB Type-C | 2 x USB 2.0 | |||||
| Operating System | Microsoft ® Windows 10 ® | Microsoft ® Windows 10 ® | Microsoft ® Windows 10 ® | Microsoft ® Windows 10 ® | |||||
| Memory | 8GB | 16GB | 16GB | 16GB | 8GB | 16GB | 16GB | 16GB | |
| Processor | Intel i7 | Intel i7 | Intel i7 | Intel i7 | |||||
| Storage Capacity (Size) | Up to 128TB | Up to 256TB | Up to 128TB | Up to 256TB | Up to 80TB
(70TB usable) | Up to 160TB
(150TB usable) | Up to 96TB
(84TB usable) |
Up to 192TB
(168TB usable) | |
| Storage Configuration | JBOD | JBOD | RAID 5 | RAID 5 | RAID 6 | ||||
| Network | Dual GbE | Dual GbE | Dual GbE | Dual GbE | |||||
| Power Supply | 650W | 650W | 650W | 650W | |||||
| Power Rating | Input: Ac 100-240V, 10-5A, 47-63Hz | Input: AC 100~240V, 10-5A, 47-63Hz | Input: AC 100~240V, 10-5A, 47-63Hz | Input: AC 100~240V, 10-5A, 47-63Hz | |||||
| Max Power Consumption | 160W | 245W | 160W | 245W | 175W | 300W | 175W | 300W | |
| Country of Origin | Assembled in the USA | Assembled in the USA | Assembled in the USA | Assembled in the USA | |||||
| NDAA Compliant | Yes | Yes | Yes | Yes | |||||
Availability
The transition to the next generation is expected to begin in Q1 2022.
