This product has been discontinued. Browse our current product line for an alternative solution or contact us for help.

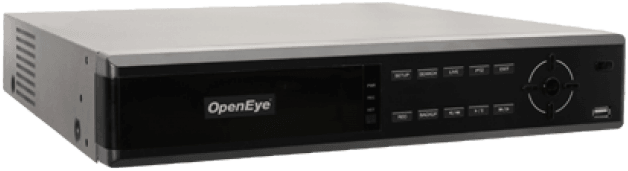

E-Series NVR Embedded Network Video Recorder
OE-ENVR

Product Overview

The newest addition to the E-Series embedded recorder lineup, the E-Series NVR, merges powerful high-definition network video recording with the ease of Plug N' Play installation. Housed in a compact chassis, the E-Series NVR supports OpenEye Power over Ethernet (PoE) cameras that enable fast and easy access to recording resolutions up to 1080p.

Multiple remote users can view, search, and backup data for off-site storage as well as configure the recorder using RADIUS video management software.

The E-Series NVR supports the Heartbeat function, which allows the recorder to communicate with the cloud-based health monitoring service, ReportStar, every five minutes. Additional features include eSATA output to additional video storage devices and free DDNS for the life of the product. The E-Series NVR also supports the MDVR app, allowing mobile access through your smart phone or tablet.

Built with the same quality and expertise users have come to expect from OpenEye, the E-Series NVR is ready to supply fast Plug N' Play high definition video for your next installation.

User Login
Sign in and get access to exclusive content. Don't have an account? Register now.

Technical Specs

Camera Channels:
4, 8, 16
Max Resolution:
3MP (2048 x 1536)
Max PoE Output:
50W PoE Max, 100W PoE Max, No on-board PoE
Max IPS Per Channel:
30 IPS
Recording Rate (IPS):
120 IPS, 240 IPS
Live Display Rate (IPS):
30 IPS
Total System Bit Rate:
40Mbps
Audio Outputs:
Yes (cameras with MIC support); 1 RCA Out
Video Outputs:
1 HDMI, 1 VGA
Digital Relay Outputs:
1
Alarm Sensor Inputs:
4
Image Compression:
H.264
Recording Resolutions:
800x600, 1024x768, 1280x1024, 1020x1080
Video Signal Loss Detection:
Yes
Motion Detection:
Yes (OpenEye cameras only)
Remote Operation:
Live, Setup, PTZ, Firmware update (RADIUS only)
Remote Software:
RADIUS, Web Viewer, Mac, and Mobile apps
PTZ Control:
ONVIF
Recording Mode:
Schedules for Continuous, Motion, Sensor, Pre- and Post-Alarm, Instant, Quick Global Setup
Playback Search:
Multi-channel playback, Calendar and Timeline Search, Event and System Search, First and Last Search
Backup:
USB / Network
Digital Signature Support:
Support on AVI and JPG files
Dynamic DNS:
Free for life of product
Operating System:
Linux® Embedded
Storage (Size):
2TB, 4TB, 6TB, 8TB, 12TB
External Storage Options:
eSATA devices
Power Supply:
Input: 100 - 240vAC; Output: 48vDC / 2.5A, Input: 100 - 240vAC; Output: 48vDC / 4.2A, Input: 100 - 240vAC; Output: 48vDC / 5A
Power Draw:
55W
Dimensions:
L: 14.96" (380 mm) x W: 14.17" (360 mm) x H: 2.6" (66 mm)
Warranty:
3 Years / 1 Year Advance Replacement
