This product has been
discontinued. Browse
our current product line for an alternative solution
or contact us for help.

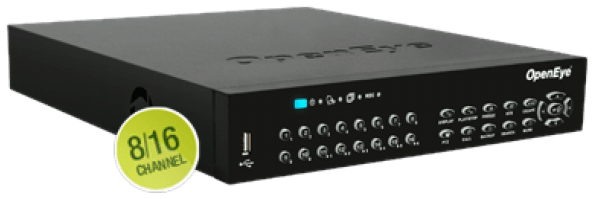

EasyDVR Embedded Recorder
OE1-D
Product Overview
The EasyDVR is a cost effective video recording solution available in 4, 8 and 16 channel models. The recorder uses H.264 compression on a Linux embedded platform for efficient use of storage space and a stable operating environment. The EasyDVR is perfect for users who want easy access to their recorders anytime and anywhere. Remote access is made easy with the browser-based remote application which allows you to view, manage and configure the system from any internet connected computer. You can also use your mobile device to view live video, search and playback video, and manage recorder settings with the free apps for Android, iPhone and iPad.
Sign in and get access to exclusive content.
Don't have an account? Register now.
Technical Specs
Camera Channels:
4, 8, 16
Looping Outputs:
0
Max IPS Per Ch:
30 IPS
Recording Rate:
120 IPS, 240 IPS, 480 IPS
Live Display Rate:
120 IPS, 240 IPS, 480 IPS
Audio Channels:
4, 8, 16
Video Outputs:
VGA, HDMI (8 and 16 Ch only), MAIN OUT (BNC), SPOT OUT (BNC)
Digital Relay Outputs:
1
Alarm Sensor Inputs:
4, 8, 16
Image Compression:
H.264
Recording Resolutions:
NTSC: 352x240, 704x240, 704x480
Video Signal Loss Detection:
Yes
Motion Detection:
Adjustable Sensitivity, Custom Grid
Remote Operation:
Live view, Setup, PTZ, Search
Remote Software:
Mobile Apps (iPhone, iPad, Android), Web Viewer (IE7+ recommended)
PTZ Control:
RS-485
Recording Mode:
Day, Night and Weekend schedules; Motion and Event recording
Playback Search:
Multi-channel playback (1, 4, 9, 16), Calendar & Timeline search,Event and System search, First and Last search
Backup:
USB
Digital Signature Support:
Yes
Dynamic DNS:
Free for life of product
Operating System:
Linux® Embedded
Storage (Size):
500GB / 1TB / 2TB, 1TB / 2TB / 4TB, 1TB / 2TB / 4TB /6TB
External Storage Options:
N / A
Dimensions:
L: 8.6" (220mm)W: 8.5" (216mm)H: 1.9" (49mm), L: 14.1" (360mm)W: 11" (280mm)H: 2" (53mm)
Warranty:
3 Years / 1 Year Advance Replacement
